Automated Reporting Examples
This guide walks you through setting up BDXpy as a FastAPI data service on a Grafana server and configuring it as a JSON API data source.

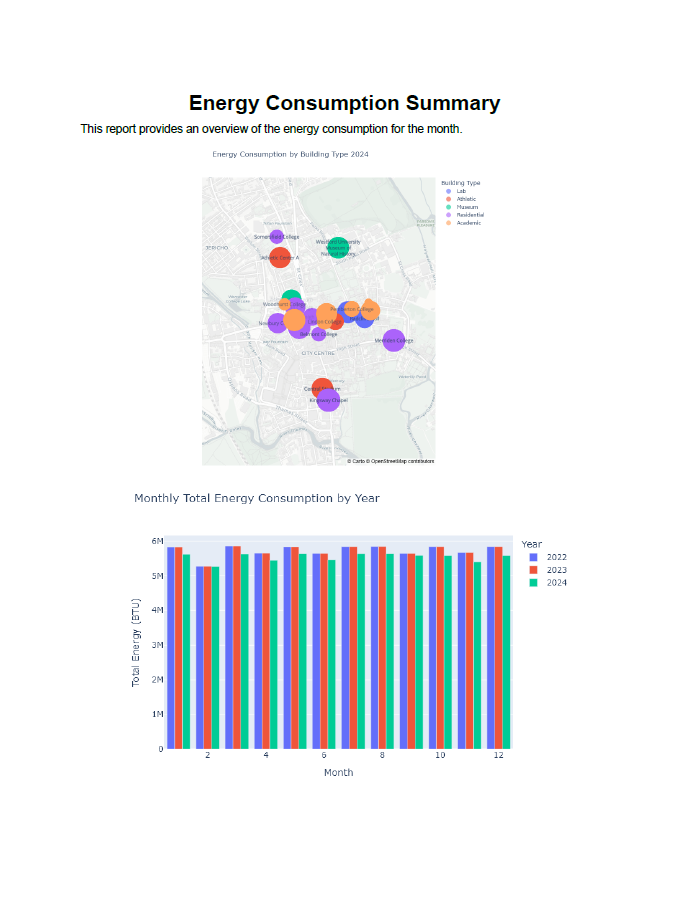

Example PDF generation of monthly energy report
Below is example code where you can insert BDXpy code to generate a PDF from a combination of images and tables. In the second example these principles can be applied to create a PDF that gets emailed.
Show Code
import numpy as np
import pandas as pd
import plotly.express as px
import plotly.graph_objects as go
import imgkit
import time
import plotly.io as pio
import matplotlib.pyplot as plt
import pandas as pd
from pandas.plotting import table
from selenium import webdriver
from PIL import Image
import matplotlib.pyplot as plt
import pandas as pd
from reportlab.lib.pagesizes import letter
from reportlab.lib import colors
from reportlab.lib.styles import getSampleStyleSheet
from reportlab.lib.units import inch
from reportlab.lib.utils import ImageReader
from reportlab.pdfgen import canvas
from reportlab.platypus import SimpleDocTemplate, Table, TableStyle, Paragraph
from datetime import datetime
import os
from reportlab.lib.pagesizes import letter
from reportlab.platypus import SimpleDocTemplate, Image, Paragraph
from reportlab.lib.styles import getSampleStyleSheet
from reportlab.lib.units import inch
from PIL import Image as PILImage
print("Current Working Directory:", os.getcwd())
# Function to save the DataFrame to a PNG
def save_dataframe_to_png(df, file_name):
# Set up the plot
fig, ax = plt.subplots(figsize=(12, 6)) # Adjust size as necessary
ax.axis('off') # No axes
ax.axis('tight')
# Create the table from the DataFrame
table_data = table(ax, df, loc='center', cellLoc='center', colWidths=[0.1] * len(df.columns))
# Save the figure as a PNG
plt.savefig(file_name, bbox_inches='tight', dpi=300)
# Assuming 'fig' is your Plotly figure object
def save_plotly_as_png(fig, output_filename):
# Save the figure as a PNG file
pio.write_image(fig, output_filename)
def save_html_to_file(fig, file_name):
# Save the Plotly figure as an HTML file
fig.write_html(file_name)
config = imgkit.config(wkhtmltoimage=r'C:\Program Files\wkhtmltopdf\bin\wkhtmltoimage.exe')
def html_to_png(html_file, output_image):
time.sleep(2) # Adjust the delay as necessary
imgkit.from_file(html_file, output_image, config=config)
#### BDXpy function would go here along with component selections #####
df=data
df['Timestamp'] = pd.to_datetime(df['Timestamp'])
# Ensure your start and end dates are in datetime format
start_date = pd.to_datetime('2024-09-01')
end_date = pd.to_datetime('2024-09-30')
# Filter the DataFrame
filtered_df = df[(df['Timestamp'] >= start_date) & (df['Timestamp'] <= end_date)]
filtered_df.to_csv("filtered_df.csv", index=False)
# Define columns to keep without aggregation (taking the first occurrence)
cols_to_keep = ["Building Name", "Building Type", "Latitude", "Longitude"]
# Define columns to sum
cols_to_sum = ["Total Energy", "Electric Energy", "Cooling Energy", "Heating Energy",
"Total Cost", "Metric Tons CO2"]
# Group by 'Building Name', summing only the relevant columns
df_summed = filtered_df.groupby("Building Name", as_index=False).agg(
{**{col: 'first' for col in cols_to_keep}, # Keep first occurrence
**{col: 'sum' for col in cols_to_sum}, # Sum numeric values
"Timestamp": "count"} # Count total rows
)
# Rename the counted column
df_summed = df_summed.rename(columns={"Timestamp": "Total Rows Summed"})
df_summed.to_csv("df_summed.csv", index=False)
# Create a map with bubble size variation and opacity
fig = px.scatter_mapbox(
df_summed,
lat='Latitude',
lon='Longitude',
hover_name='Building Name',
size='Total Energy', # Bubble size based on Total Energy
color='Building Type', # Color based on Building Type
size_max=40, # Max bubble size
zoom=14,
mapbox_style="carto-positron",
text='Building Name',
opacity = 0.6,
title= "Energy Consumption by Building Type"
)
# Set map layout
fig.update_layout(
mapbox_center={"lat": 51.7540, "lon": -1.2577},
margin={"r": 10, "t": 100, "l": 10, "b": 10},
height=800 # Adjust height for better layout
)
fig.update_traces(marker=dict(opacity=0.6))
fig.show()
print(fig.data[0])
# Example usage
fig.write_html("mapenergychart.html")
# Save the figure as a PNG file
fig.write_image("mapenergychart.png", format="png", scale=2)
df_expanded = df
# Ensure 'Timestamp' column is in datetime format if not already
df_expanded['Timestamp'] = pd.to_datetime(df_expanded['Timestamp'])
# Extract the year from the 'Timestamp' column
df_expanded['Year'] = df_expanded['Timestamp'].dt.year
# Group by year and building type, calculating the sum of total cost
cost_summary = df_expanded.groupby(['Building Type', 'Year'])['Total Cost'].sum().unstack().fillna(0)
# Round cost values to the nearest whole number
cost_summary = cost_summary.round(0)
# Calculate percent change for the latest year compared to the previous year
cost_summary['Percent Change'] = cost_summary.pct_change(axis=1).iloc[:, -1] * 100
# Calculate actual cost change (difference between current year and previous year)
last_year = cost_summary.columns[-2] # Second to last year (previous year)
current_year = cost_summary.columns[-3] # Last year column (current year)
cost_summary['Actual Cost Change'] = cost_summary[last_year] - cost_summary[current_year]
# Add a totals row at the bottom of the DataFrame
totals_row = cost_summary.sum(numeric_only=True)
totals_row.name = 'Total'
cost_summary = pd.concat([cost_summary, totals_row.to_frame().T], axis=0)
# Styling the DataFrame for a report
def color_percent(series):
"""Color green for negative (decrease), red for positive (increase)."""
return ['color: green' if val < 0 else 'color: red' if val > 0 else 'color: black' for val in series]
# Apply formatting to all year columns dynamically
year_columns = [col for col in cost_summary.columns if isinstance(col, int)] # Select only year columns
# Apply formatting and coloring
styled_summary = cost_summary.style.format({
**{year: '${:,.0f}' for year in year_columns}, # Apply currency format to all year columns
'Percent Change': '{:.2f}%', # Format percent change
'Actual Cost Change': '${:,.0f}' # Format actual cost change as currency
}).apply(color_percent, subset=['Percent Change', 'Actual Cost Change'])
# Display or save to HTML for review
styled_summary.to_html('cost_summary_report.html')
# Show the styled DataFrame
styled_summary
# Use the function to save your cost_summary DataFrame
# save_dataframe_to_png(cost_summary, 'cost_summary.png')
# Replicating the logic for BTU for Total Energy instead of cost, rounding to the nearest whole number
df_expanded = df_expanded.copy() # Assuming df_expanded is your main DataFrame
# Ensure 'Timestamp' column is in datetime format if not already
df_expanded['Timestamp'] = pd.to_datetime(df_expanded['Timestamp'])
# Extract the year from the 'Timestamp' column
df_expanded['Year'] = df_expanded['Timestamp'].dt.year
# Group by year and building type, calculating the sum of total energy (BTU)
energy_summary = df_expanded.groupby(['Building Type', 'Year'])['Total Energy'].sum().unstack().fillna(0)
# Round energy values to the nearest whole number
energy_summary = energy_summary.round(0)
# Calculate percent change for the latest year compared to the previous year
energy_summary['Percent Change'] = energy_summary.pct_change(axis=1).iloc[:, -1] * 100
# Calculate actual energy change (difference between current year and previous year)
last_year = energy_summary.columns[-2] # Second to last year (previous year)
current_year = energy_summary.columns[-3] # Last year column (current year)
energy_summary['Actual Energy Change'] = energy_summary[last_year] - energy_summary[current_year]
# Add a totals row at the bottom of the DataFrame
totals_row = energy_summary.sum(numeric_only=True)
totals_row.name = 'Total'
energy_summary = pd.concat([energy_summary, totals_row.to_frame().T], axis=0)
# Styling the DataFrame for a report
def color_percent(series):
"""Color green for negative (decrease), red for positive (increase)."""
return ['color: green' if val < 0 else 'color: red' if val > 0 else 'color: black' for val in series]
# Apply formatting to all year columns dynamically
year_columns = [col for col in energy_summary.columns if isinstance(col, int)] # Select only year columns
# Apply formatting and coloring
styled_energy_summary = energy_summary.style.format({
**{year: '{:,.0f}' for year in year_columns}, # Apply whole number format to all year columns
'Percent Change': '{:.2f}%', # Format percent change
'Actual Energy Change': '{:,.0f}' # Format actual energy change
}).apply(color_percent, subset=['Percent Change', 'Actual Energy Change'])
# Display or save to HTML for review
styled_energy_summary.to_html('energy_summary_report.html')
# Show the styled DataFrame
styled_energy_summary
# Use the function to save your cost_summary DataFrame
# save_dataframe_to_png(energy_summary, 'energy_summary.png')
# Assuming there is a 'Metric Tons CO2' column or we generate one based on energy (Total Energy * emission factor)
# You can change the factor to match your data.
emission_factor = 0.0001 # Example: 0.0001 Metric Tons of CO2 per BTU of energy
# Create Metric Tons CO2 column if it doesn't exist
if 'Metric Tons CO2' not in df_expanded.columns:
df_expanded['Metric Tons CO2'] = df_expanded['Total Energy'] * emission_factor
# Extract the year from the 'Timestamp' column
df_expanded['Year'] = df_expanded['Timestamp'].dt.year
# Group by year and building type, calculating the sum of Metric Tons CO2
co2_summary = df_expanded.groupby(['Building Type', 'Year'])['Metric Tons CO2'].sum().unstack().fillna(0)
# Round CO2 values to the nearest whole number
co2_summary = co2_summary.round(0)
# Calculate percent change for the latest year compared to the previous year
co2_summary['Percent Change'] = co2_summary.pct_change(axis=1).iloc[:, -1] * 100
# Calculate actual CO2 change (difference between current year and previous year)
last_year = co2_summary.columns[-2] # Second to last year
current_year = co2_summary.columns[-3] # Last year column
co2_summary['Actual CO2 Change'] = co2_summary[last_year] - co2_summary[current_year]
# Add a totals row at the bottom of the DataFrame
totals_row = co2_summary.sum(numeric_only=True)
totals_row.name = 'Total'
co2_summary = pd.concat([co2_summary, totals_row.to_frame().T], axis=0)
# Styling the DataFrame for a report
def color_percent(series):
"""Color green for negative (decrease), red for positive (increase)."""
return ['color: green' if val < 0 else 'color: red' if val > 0 else 'color: black' for val in series]
# Apply formatting to all year columns dynamically
year_columns = [col for col in co2_summary.columns if isinstance(col, int)] # Select only year columns
# Apply formatting and coloring
styled_co2_summary = co2_summary.style.format({
**{year: '{:,.0f}' for year in year_columns}, # Apply whole number format to all year columns
'Percent Change': '{:.2f}%', # Format percent change
'Actual CO2 Change': '{:,.0f}' # Format actual CO2 change
}).apply(color_percent, subset=['Percent Change', 'Actual CO2 Change'])
# Display or save to HTML for review
styled_co2_summary.to_html('co2_summary_report.html')
# Show the styled DataFrame
styled_co2_summary
# Use the function to save your cost_summary DataFrame
# save_dataframe_to_png(co2_summary, 'co2_summary.png')
# Group the data by year and month, summing the total energy for each month of each year
df_expanded['Month'] = df_expanded['Timestamp'].dt.month
monthly_energy_by_year = df_expanded.groupby(['Year', 'Month'])['Total Energy'].sum().unstack(level=0).fillna(0)
# Convert the DataFrame to long format for Plotly
monthly_energy_long = monthly_energy_by_year.reset_index().melt(id_vars='Month', var_name='Year', value_name='Total Energy')
# Create a Plotly chart
fig = px.bar(monthly_energy_long, x='Month', y='Total Energy', color='Year', barmode='group',
labels={'Total Energy': 'Total Energy (BTU)', 'Month': 'Month'},
title='Monthly Total Energy Consumption by Year')
# Show the chart
fig.show()
# Example usage
fig.write_html("yearoveryearchart.html")
fig.write_image("yearoveryearchart.png", format="png", scale=2)
# Group the data by building and year to calculate the total energy for each building
building_energy_2023 = df_expanded[df_expanded['Year'] == 2023].groupby('Building Name')[['Electric Energy', 'Heating Energy']].sum()
building_energy_2024 = df_expanded[df_expanded['Year'] == 2024].groupby('Building Name')[['Electric Energy', 'Heating Energy']].sum()
# Compute percent changes between 2023 and 2024
building_percent_change = pd.DataFrame()
building_percent_change['Percent Change Electric'] = ((building_energy_2024['Electric Energy'] - building_energy_2023['Electric Energy']) / building_energy_2023['Electric Energy']) * 100
building_percent_change['Percent Change Heating'] = ((building_energy_2024['Heating Energy'] - building_energy_2023['Heating Energy']) / building_energy_2023['Heating Energy']) * 100
building_percent_change['Total Energy'] = building_energy_2024.sum(axis=1) # Total energy in 2024
building_percent_change['Building Type'] = df_expanded.groupby('Building Name')['Building Type'].first() # Get building type
building_percent_change = building_percent_change.reset_index()
# Create the updated bubble chart
fig = px.scatter(
building_percent_change,
x='Percent Change Heating',
y='Percent Change Electric',
size='Total Energy',
color='Building Type',
text='Building Name', # Show building names as visible text labels
title='Energy Consumption Changes by University Buildings (2023 vs 2024)',
labels={'Percent Change Heating': 'Heating Consumption Change (%)', 'Percent Change Electric': 'Electric Consumption Change (%)'},
size_max=60, # Maximum size for the bubbles
template='plotly_white' # Apply the Plotly white theme
)
# Add vertical and horizontal lines at x=0 and y=0
fig.add_vline(x=0, line_dash="dash", line_color="black")
fig.add_hline(y=0, line_dash="dash", line_color="black")
# Customize text color based on conditions and add traces
for i, row in building_percent_change.iterrows():
text_color = None # Reset the text_color for each row
if row['Percent Change Heating'] < 0 and row['Percent Change Electric'] < 0:
text_color = 'green'
elif row['Percent Change Heating'] > 0 and row['Percent Change Electric'] > 0:
text_color = 'red'
else:
text_color = 'black' # Default color for other conditions
# Add a new trace with the correct text color
new_trace = px.scatter(
pd.DataFrame([row]),
x='Percent Change Heating',
y='Percent Change Electric',
size='Total Energy',
text='Building Name',
size_max=60
).data[0]
# Update the text color for this trace and remove markers
new_trace.textfont = dict(color=text_color, size=14)
new_trace.marker = dict(size=0, opacity=0) # Remove the marker but keep the text
# Add the trace to the figure
fig.add_trace(new_trace)
# Update layout without explicitly specifying font family to use Plotly's default (Open Sans)
fig.update_layout(
font_size=14,
xaxis_title="Heating Consumption Change (%)",
yaxis_title="Electric Consumption Change (%)",
title_font_size=20,
height=800
)
# Show the updated figure
fig.show()
# Example usage
fig.write_html("pctchangechart.html")
fig.write_image("pctchangechart.png", format="png", scale=2)
# Function to add images with preserved aspect ratio
def add_image_with_aspect_ratio(image_path, max_width=6*inch, max_height=4*inch):
img = PILImage.open(image_path)
width, height = img.size
aspect_ratio = width / height
if width > height:
new_width = min(max_width, width * (max_height / height))
new_height = new_width / aspect_ratio
else:
new_height = min(max_height, height * (max_width / width))
new_width = new_height * aspect_ratio
return Image(image_path, width=new_width, height=new_height)
def create_pdf(output_filename, map_chart, cost_summary_img, energy_summary_img, co2_summary_img, yoy_chart, pct_change_chart):
pdf = SimpleDocTemplate(output_filename, pagesize=letter)
elements = []
# Title and summary text
styles = getSampleStyleSheet()
title = Paragraph("Energy Consumption Summary", styles['Title'])
summary_text = Paragraph(
"This report provides an overview of the energy consumption for the month.", styles['Normal']
)
elements.append(title)
elements.append(summary_text)
# Add map chart image with aspect ratio preserved
map_image = add_image_with_aspect_ratio(map_chart)
elements.append(map_image)
# Add year-over-year chart with aspect ratio preserved
yoy_image = add_image_with_aspect_ratio(yoy_chart)
elements.append(yoy_image)
# Add percentage change chart with aspect ratio preserved
pct_change_image = add_image_with_aspect_ratio(pct_change_chart)
elements.append(pct_change_image)
# Build PDF
pdf.build(elements)
# Call the create_pdf function with PNG paths
create_pdf("energy_summary.pdf", "mapenergychart.png", "cost_summary.png", "energy_summary.png", "co2_summary.png", "yearoveryearchart.png", "pctchangechart.png")
Email PDF Report
A SMTP email service can be used to email this PDF. The python script can then be referenced in a BAT file and scheduled to run from the Windows Task Scheduler on a user specificed interval.
Show Code
from bdx.auth import UsernameAndPasswordAuthenticator
from bdx.core import BDX
from bdx.types import TimeFrame
from datetime import datetime, timedelta
import os
from dotenv import load_dotenv
import pandas as pd
import matplotlib.pyplot as plt
from io import BytesIO
from reportlab.lib.colors import HexColor
from reportlab.lib import colors
from reportlab.platypus import SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle, Image
from reportlab.lib.pagesizes import A4
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
import smtplib
from email.message import EmailMessage
# Load environment variables from .env file
load_dotenv()
SMTP_SERVER = os.getenv("SMTP_SERVER")
SMTP_PORT = int(os.getenv("SMTP_PORT"))
SMTP_USERNAME = os.getenv("SMTP_USERNAME")
SMTP_PASSWORD = os.getenv("SMTP_PASSWORD")
RECEIVER_EMAIL = os.getenv("RECEIVER_EMAIL")
ALERT_EMAIL = os.getenv("ALERT_EMAIL")
BDX_USERNAME = os.getenv("BDX_USERNAME")
BDX_PASSWORD = os.getenv("BDX_PASSWORD")
def get_previous_month_dates():
today = datetime.now()
first_day_of_current_month = today.replace(day=1, hour=0, minute=0, second=0, microsecond=0)
last_day_of_previous_month = first_day_of_current_month - timedelta(seconds=1)
first_day_of_previous_month = last_day_of_previous_month.replace(day=1, hour=0, minute=0, second=0, microsecond=0)
return first_day_of_previous_month, last_day_of_previous_month
def create_pdf_report(data_summary, data_trend):
try:
pdf_path = "output/automated_report.pdf"
pdf = SimpleDocTemplate(pdf_path, pagesize=A4)
elements = []
styles = getSampleStyleSheet()
title = Paragraph("Automated Report Example", styles['Title'])
elements.append(title)
start_date, end_date = get_previous_month_dates()
date_text = Paragraph(f"Reporting Period: {start_date.strftime('%B %d, %Y')} to {end_date.strftime('%B %d, %Y')}", styles['BodyText'])
elements.append(date_text)
elements.append(Spacer(1, 0.2 * A4[1]))
# Example chart
fig, ax = plt.subplots(figsize=(6, 4))
ax.plot(data_trend['Date'], data_trend['Value'], marker='o')
plt.title("Example Data Trend")
plt.xlabel("Date")
plt.ylabel("Value")
plt.grid(True)
chart_image = BytesIO()
plt.savefig(chart_image, format="png")
plt.close(fig)
chart_image.seek(0)
chart = Image(chart_image, width=5 * A4[0] / 8, height=3 * A4[1] / 8)
elements.append(chart)
# Example data table
table_data = [data_summary.columns.to_list()] + data_summary.values.tolist()
table = Table(table_data)
table.setStyle(TableStyle([
('BACKGROUND', (0, 0), (-1, 0), colors.grey),
('TEXTCOLOR', (0, 0), (-1, 0), colors.whitesmoke),
('ALIGN', (0, 0), (-1, -1), 'CENTER'),
('GRID', (0, 0), (-1, -1), 1, colors.black)
]))
elements.append(table)
pdf.build(elements)
print(f"PDF report saved to {pdf_path}")
return pdf_path
except Exception as e:
print(f"Error generating PDF: {e}")
send_alert_email(f"Failed to generate PDF report: {e}")
return None
def send_email_with_pdf(pdf_path):
subject = "Automated Report Example"
body = "Please find the attached example automated report."
msg = EmailMessage()
msg["From"] = SMTP_USERNAME
msg["To"] = RECEIVER_EMAIL
msg["Subject"] = subject
msg.set_content(body)
with open(pdf_path, "rb") as f:
msg.add_attachment(f.read(), maintype="application", subtype="pdf", filename=os.path.basename(pdf_path))
with smtplib.SMTP(SMTP_SERVER, SMTP_PORT) as smtp:
smtp.starttls()
smtp.login(SMTP_USERNAME, SMTP_PASSWORD)
smtp.send_message(msg)
print(f"Email with PDF {pdf_path} sent.")
def send_alert_email(error_message):
subject = "PDF Generation Alert"
msg = EmailMessage()
msg["From"] = SMTP_USERNAME
msg["To"] = ALERT_EMAIL
msg["Subject"] = subject
msg.set_content(f"An error occurred: {error_message}")
with smtplib.SMTP(SMTP_SERVER, SMTP_PORT) as smtp:
smtp.starttls()
smtp.login(SMTP_USERNAME, SMTP_PASSWORD)
smtp.send_message(msg)
print("Alert email sent due to PDF generation failure.")
def main():
with BDX("https://yourBDXURL.com", UsernameAndPasswordAuthenticator(BDX_USERNAME, BDX_PASSWORD)) as b:
start_date, end_date = get_previous_month_dates()
print(f"Start Date: {start_date}, End Date: {end_date}")
# Example dummy data retrieval
dummy_data = b.trending.retrieveData([
{"propertyName": "value", "componentPathId": 1234567890},
{"propertyName": "value", "componentPathId": 1234567891}
], timeframe=TimeFrame(start=start_date, end=end_date))
df_dummy = pd.DataFrame({
"Date": pd.date_range(start=start_date, periods=10, freq='D'),
"Value": [x for x in range(10)]
})
df_summary = pd.DataFrame({
"Metric": ["Total Energy", "Peak Demand", "Average Usage"],
"Value": [10000, 500, 350]
})
pdf_path = create_pdf_report(df_summary, df_dummy)
if pdf_path:
send_email_with_pdf(pdf_path)
else:
print("PDF generation failed. Email not sent.")
main()
